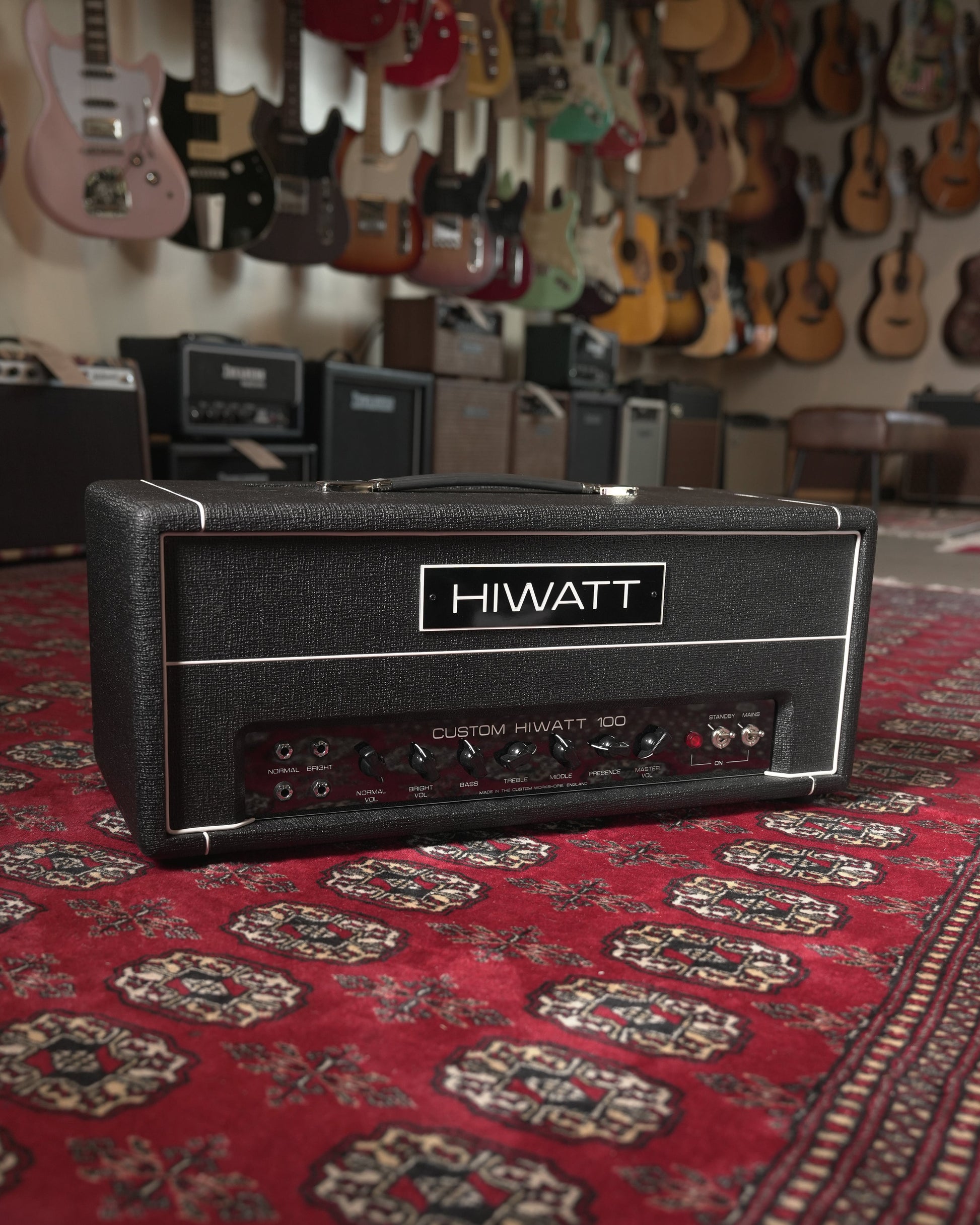

Hiwatt DR103 100 Watt Custom Valve Amplifier

Legendary Hi-Headroom, crystal-clean tonal character, instantaneous response, sonic depth and detail have made this classic Dave Reeve's circuit a recording and performance giant for more than 60 years.

The iconic British sound trusted by musicians and engineers for generations.

Specs

Wattage : 100W
Channels : Normal, Bright
Inputs : Normal Hi, Normal Low, Bright Hi, Bright Low
Output : 2 x 1/4" Speaker Out
Preamp valves : 4 x ECC83 (12AX7) : output valves4 x EL34
Controls: Normal Volume, Bright Volume
3-Band EQ shared by both channels — Bass, Treble, Middle
Presence — Treble Boost shared by both channels
Master Volume
Standby — On/Off
Mains — On/Off
Impedance : Switchable using Impedance Selector on the rear panel — 4 Ω, 8 Ω, or 16 Ω
Height : 255mm (~11")
Width : 630mm (~25")
Depth : 280mm (~12")
Weight : 21 Kg (~47 lbs)
Road Ready — Rugged 18mm Birch-Ply Construction
Band Ready — ’Soak Tested’ by our Custom Shop Technicians
Touring Ready — World Voltage and Impedance Selectors
Based on Hiwatt’s original circuit designed by Dave Reeves.
Original Partridge spec English transformers.
Meticulously hand-wired to Harry Joyce’s exacting military standards.
Proudly manufactured in the Hiwatt Custom Shops.
