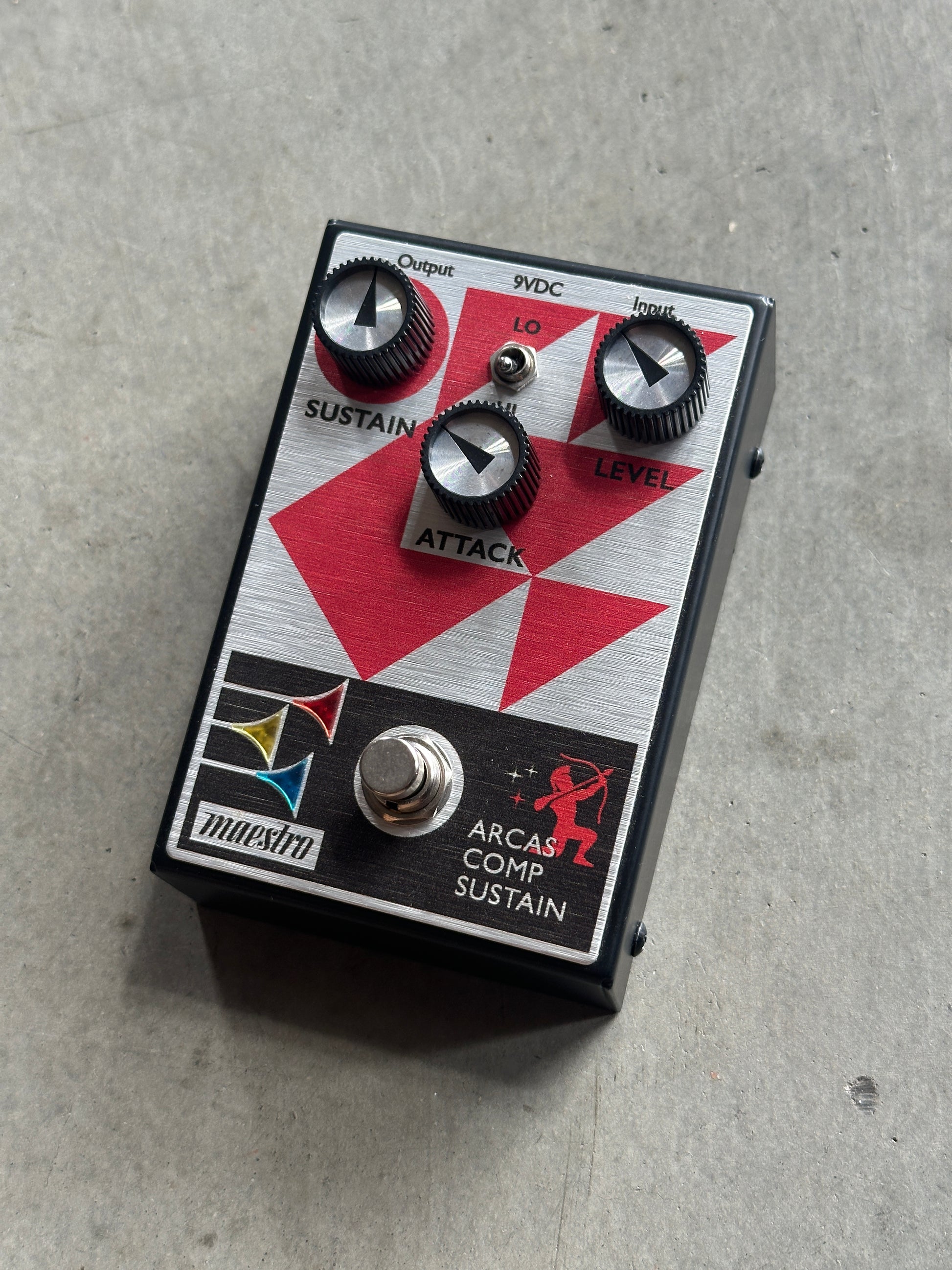

GIBSON Maestro Arcas Compressor Sustain Effects Pedal

The Maestro Arcas Compressor Sustainer pedal is an all-analog pedal with a 3-knob control layout and two modes (LO/HI) for sonic versatility. It offers both subtle, transparent compression and heavy, tight compression with sustain and level compensation to adapt to any situation. The LO mode is less sensitive to pick attack, while the HI mode is more sensitive. The true bypass footswitch triggers LED lights when active, and controls for Sustain, Attack, and Level allow for quick and precise adjustments.

Switches: True Bypass footswitch, HI/LO Mode toggle switch

LED Indicators: Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active

Signal Processing: All-Analog

Power Requirements: 9V battery or regulated 9VDC power supply (5.5 x 2.1 mm plug, wired center-negative)

Current Draw: 21.9 mA

Power On Switch: Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.

Input Impedance: 310 kOhms

Output Impedance: 470 Ohms

Switching Type: True Bypass

Dimensions: 5.04" x 3.45" x 2.50" (128.0 mm x 87.6 mm x 63.5 mm)

Weight: Net: 1.20 lb. (544.3 gm.) Gross: 1.56 lb. (707.6 gm.)
