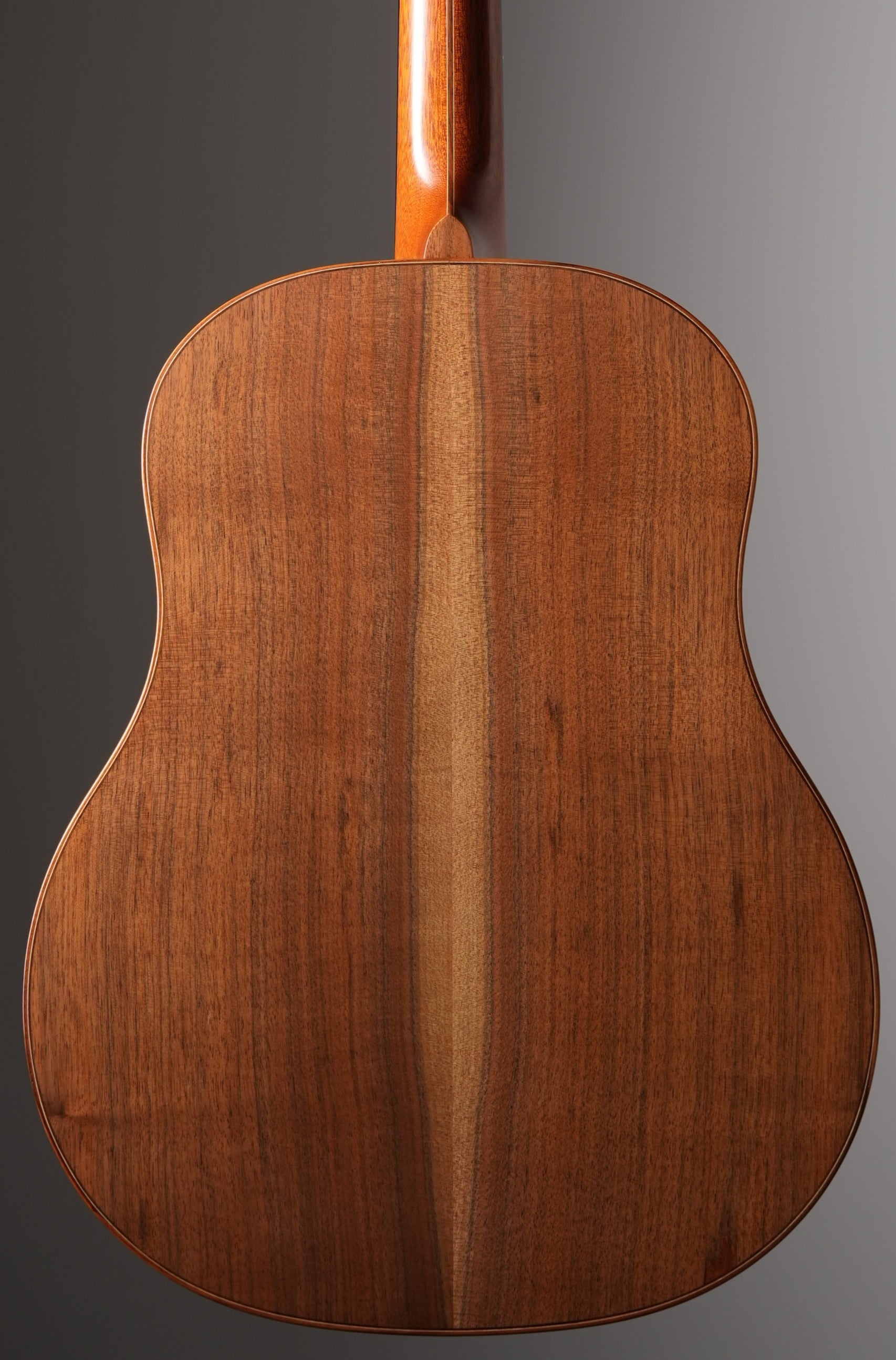

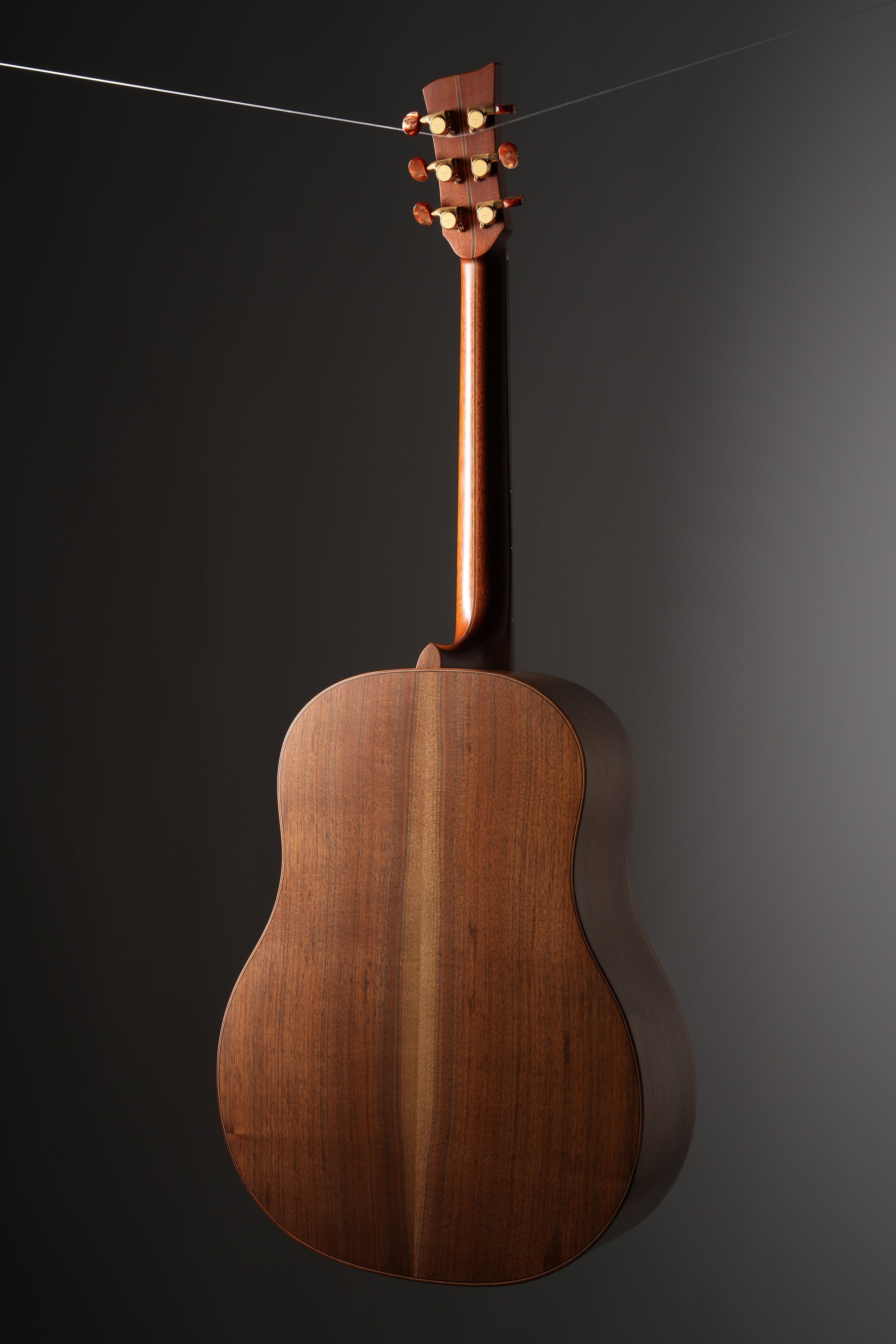

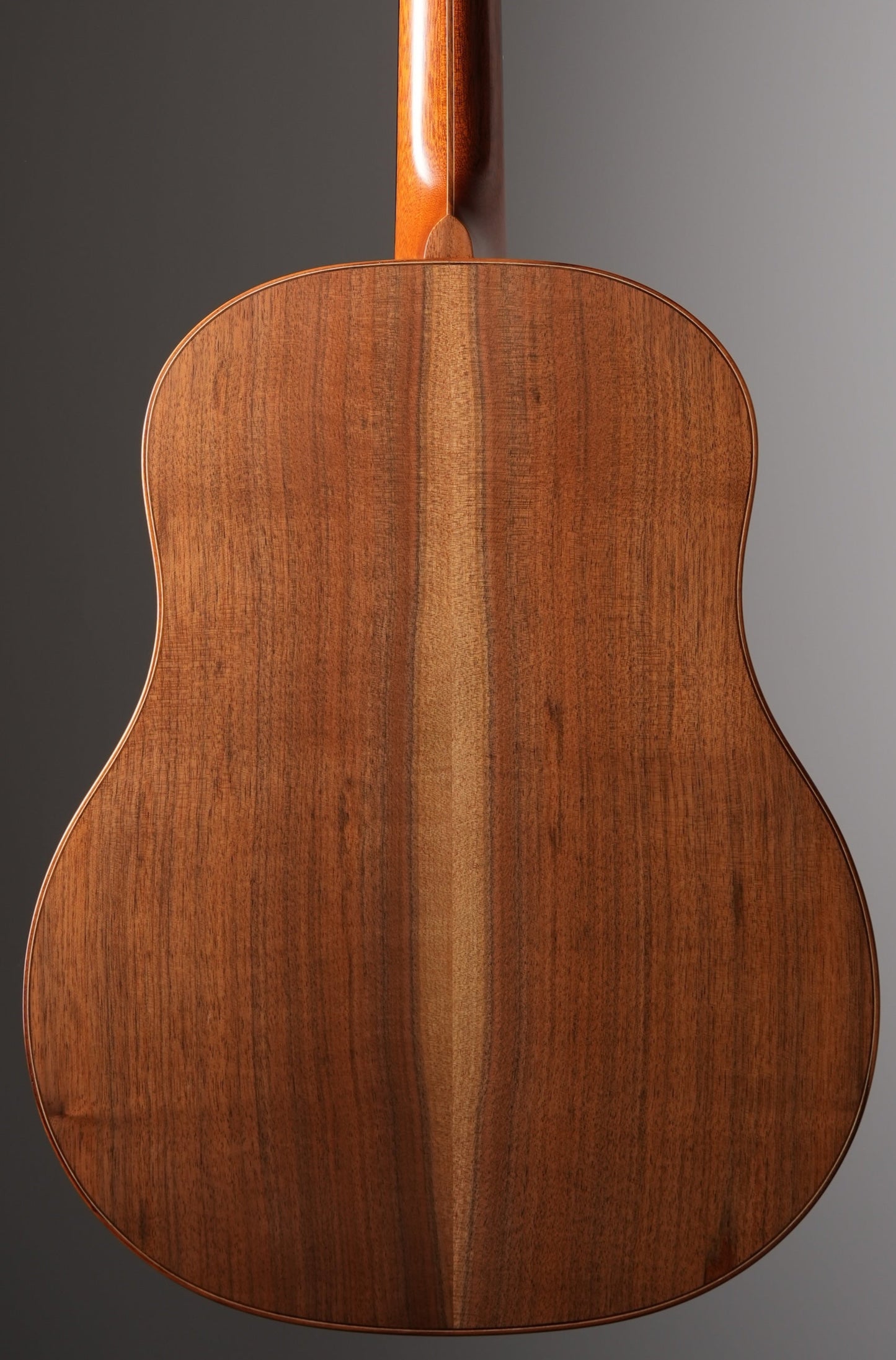

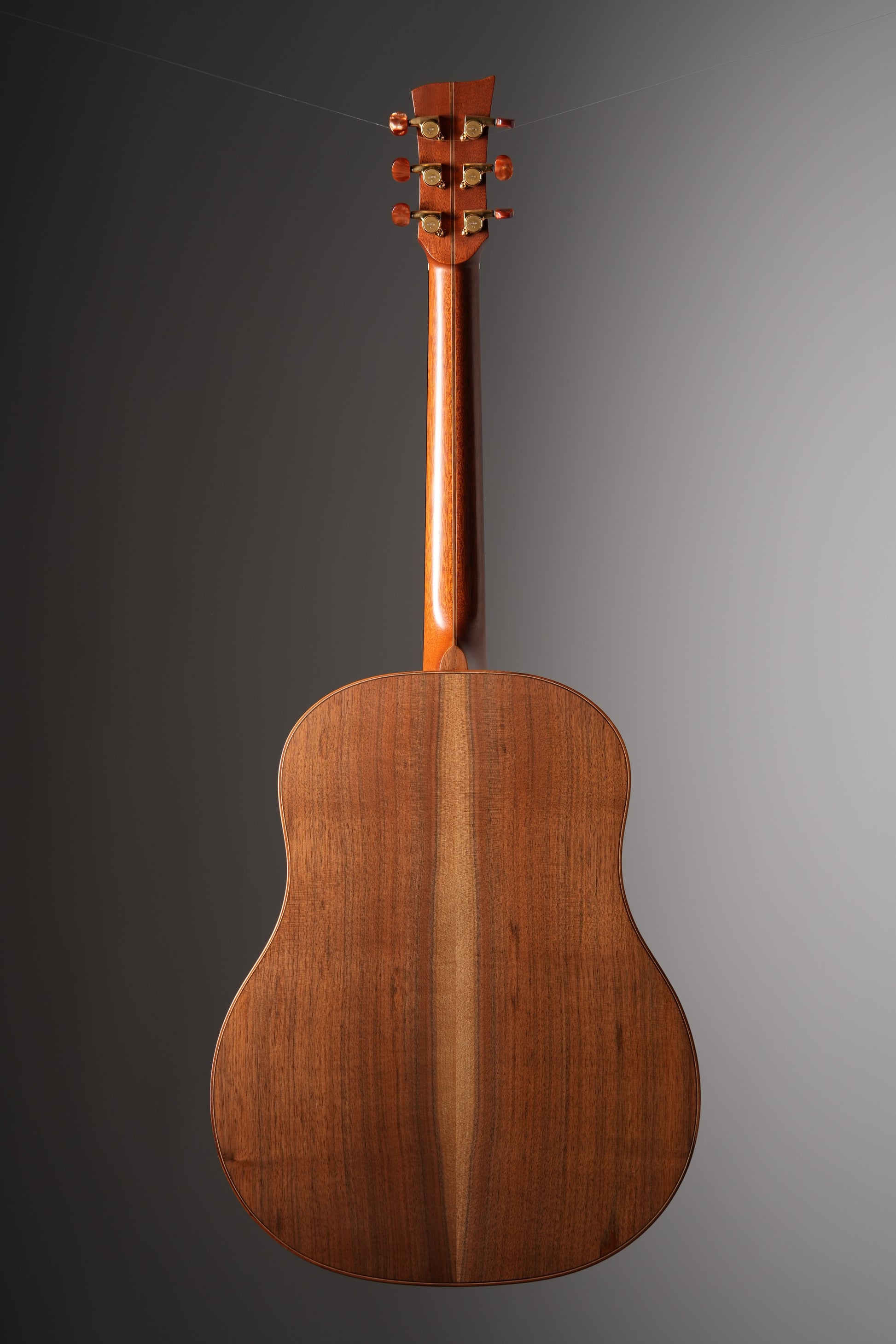

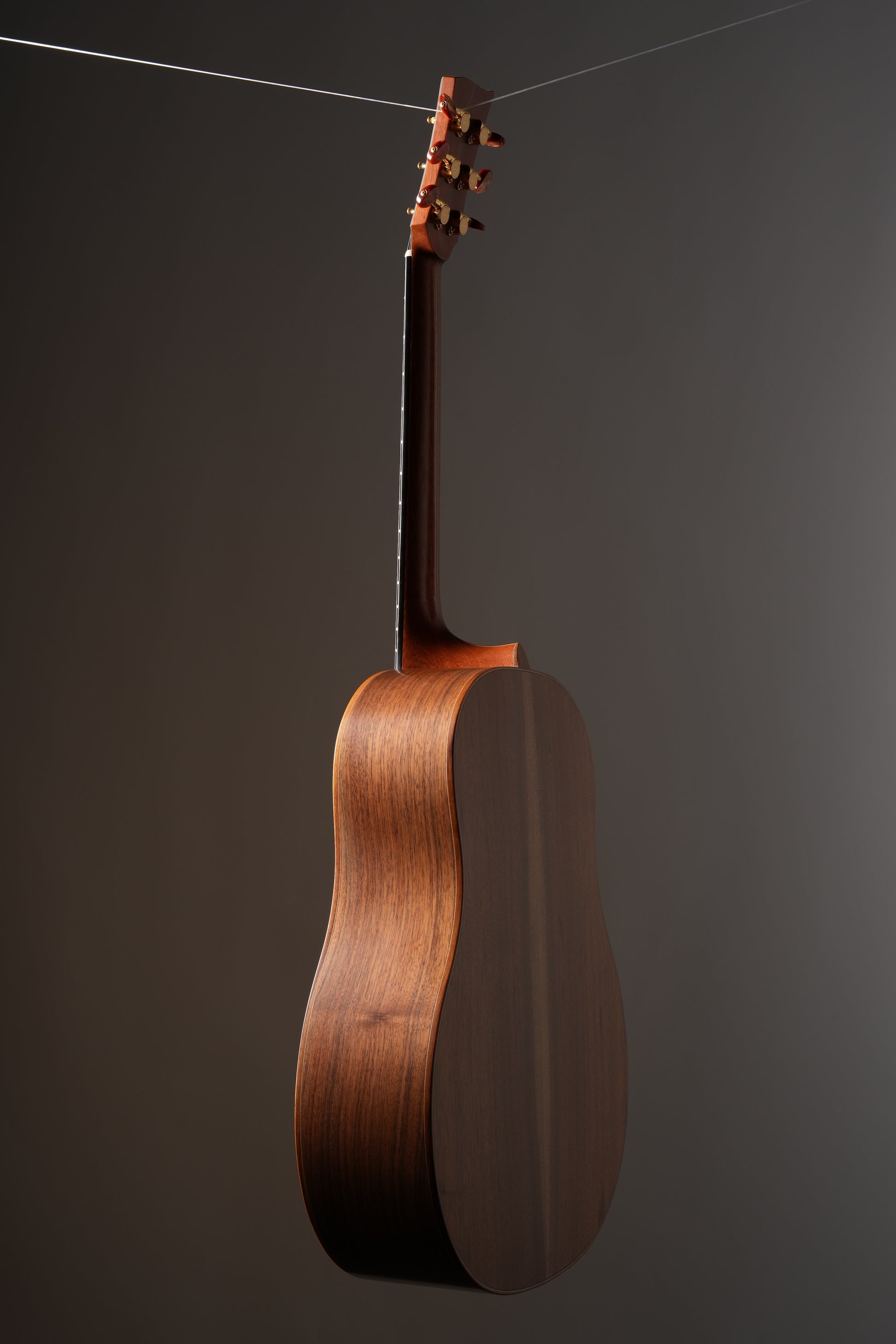

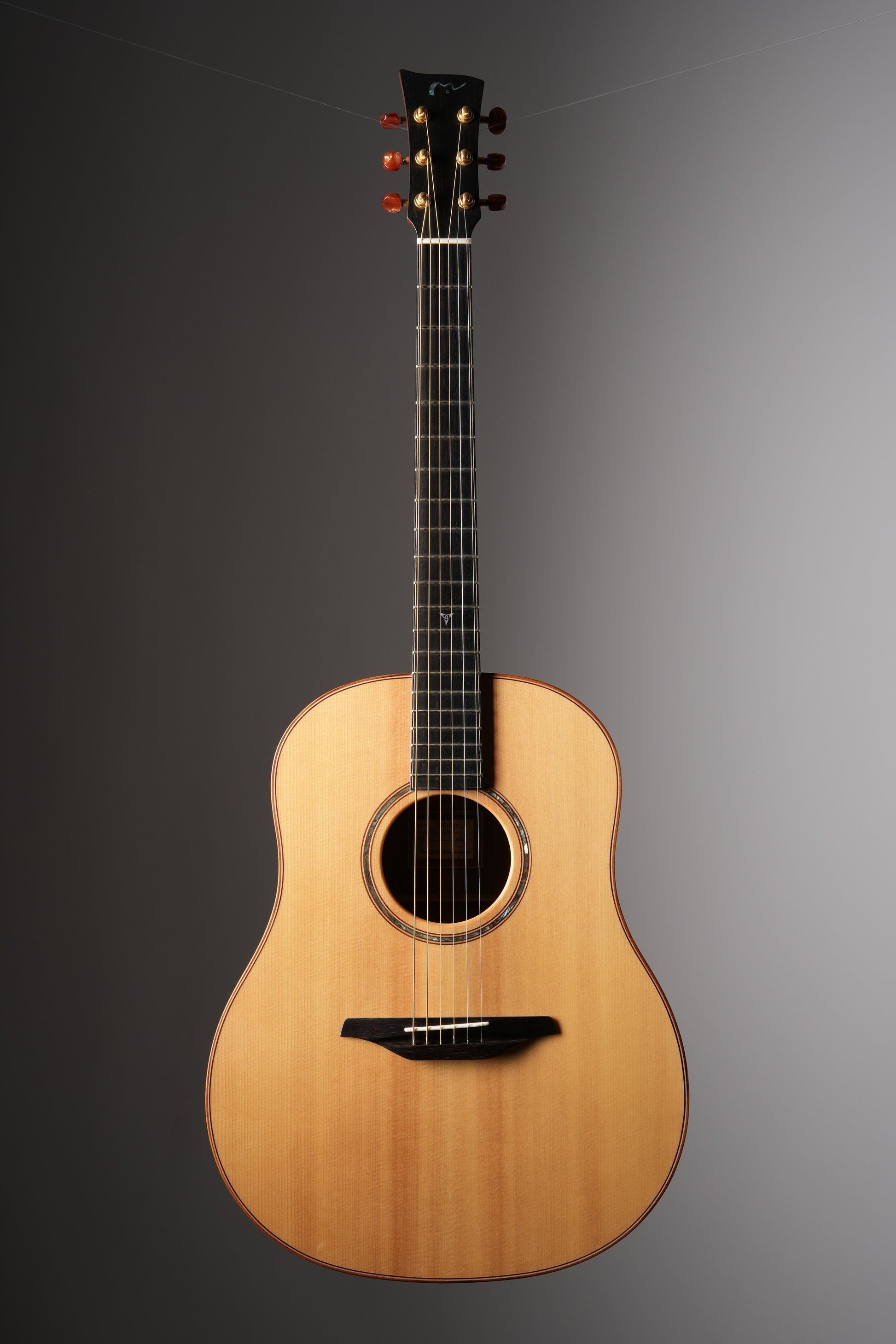

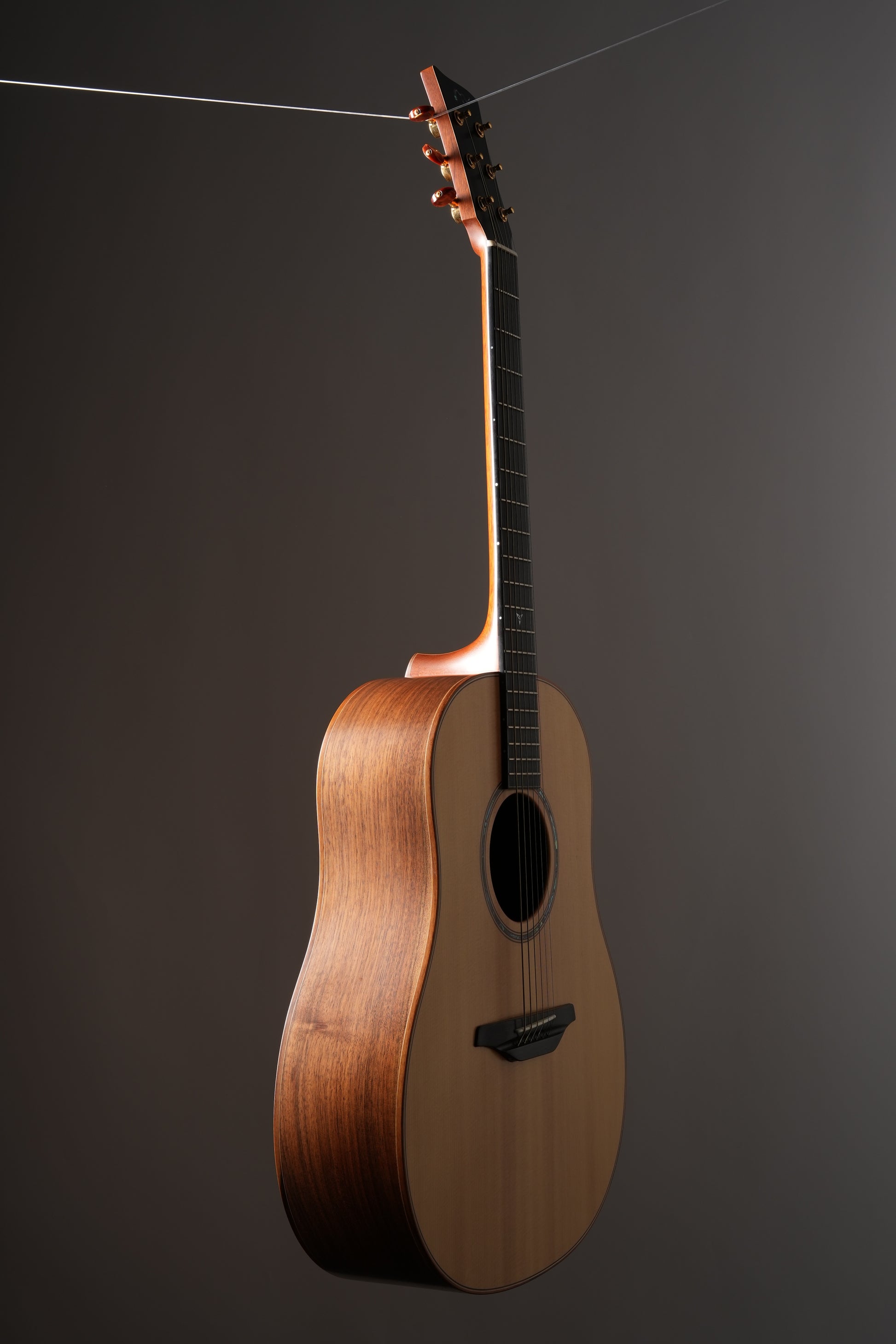

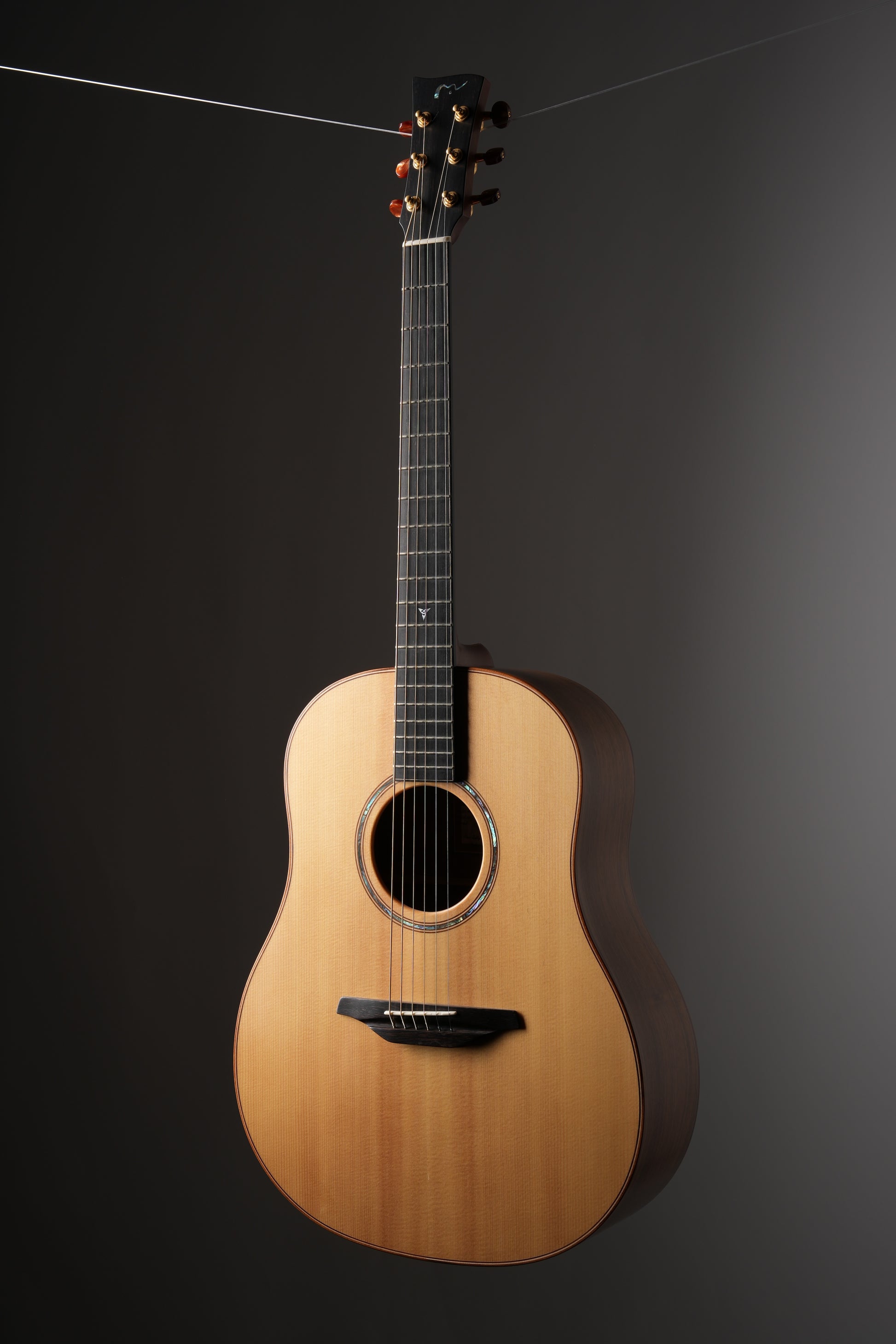

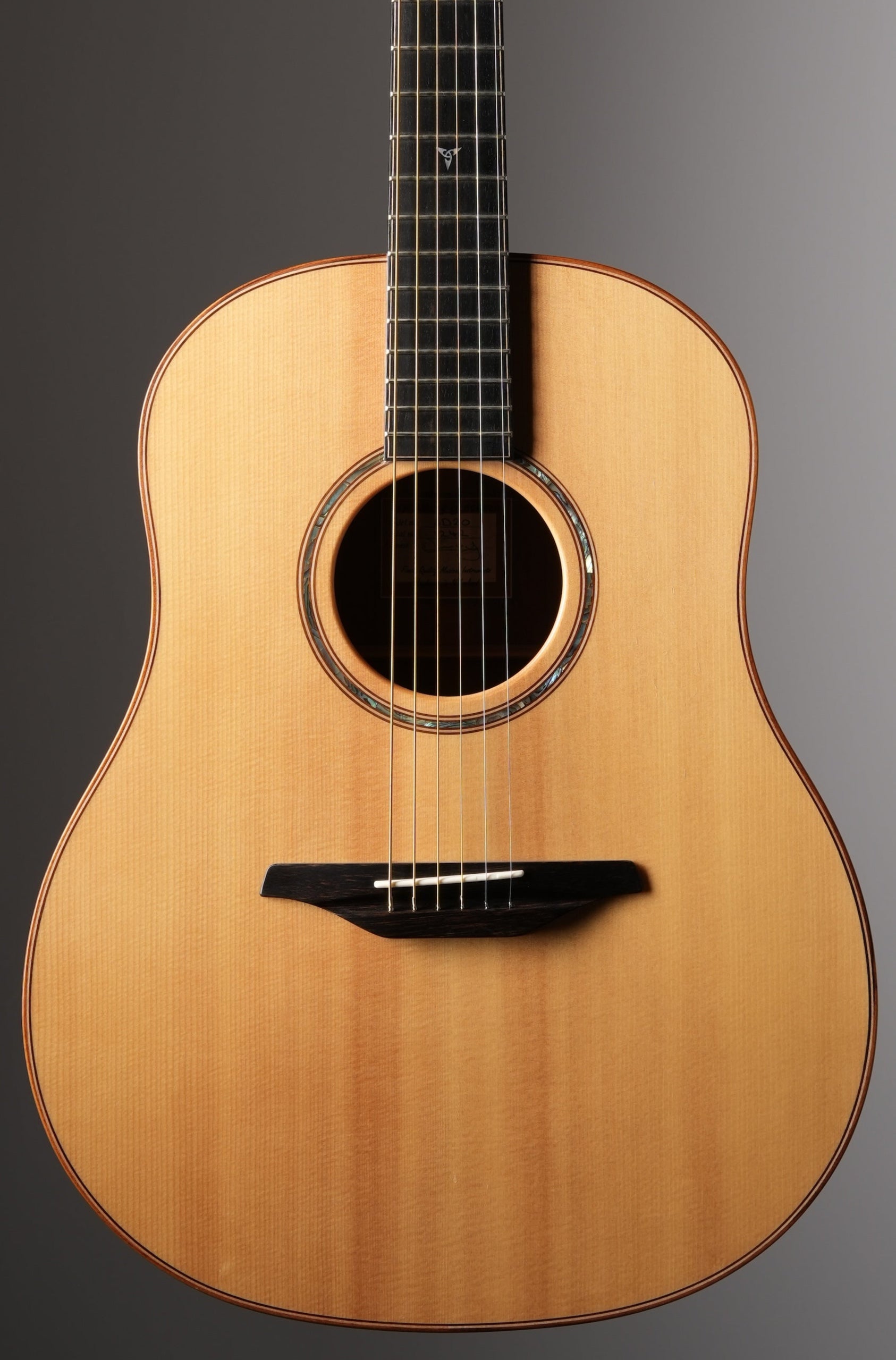

Mcilroy AD-20 Sitka/English Walnut
Mcilroy AD-20 Sitka/English Walnut
Couldn't load pickup availability
It has the same dimensions as the A series but with the traditional shallow Dreadnought waist. The shape of this model would tend to be regarded as a dropped shoulder Dread. The great bass response, which is matched by clear trebles, makes it a great guitar for any genré.
Specifications:
| Lower Bout | 15 11/16” (400mm) |
| Upper Bout | 11 3/8” (290mm) |
| Body Depth at tail block | 4 23/32” (120mm) |
| Body Depth at neck block | 3 15/16” (100mm) |
| Overall Body length | 19 15/16” (505mm) |
| Overall length | 40 3/8” (1027mm) |
Scale Length 25 1/2” (648mm)
Nut Width
1 3/4” (45mm) as standard but any size from 1 3/32” (28mm) to 2 3/16” (52mm) is available.
String spacing at bridge.
55mm as standard and 53 and 57mm are available at no extra charge. Other sizes are available.
Soundhole 4 7/16” (110mm)
All fingerboards are solid Ebony and trimmed with solid wood binding. Highly figured woods are not used for bindings on cutaway models. Nut and saddle material is Bone.
